Adding a new service

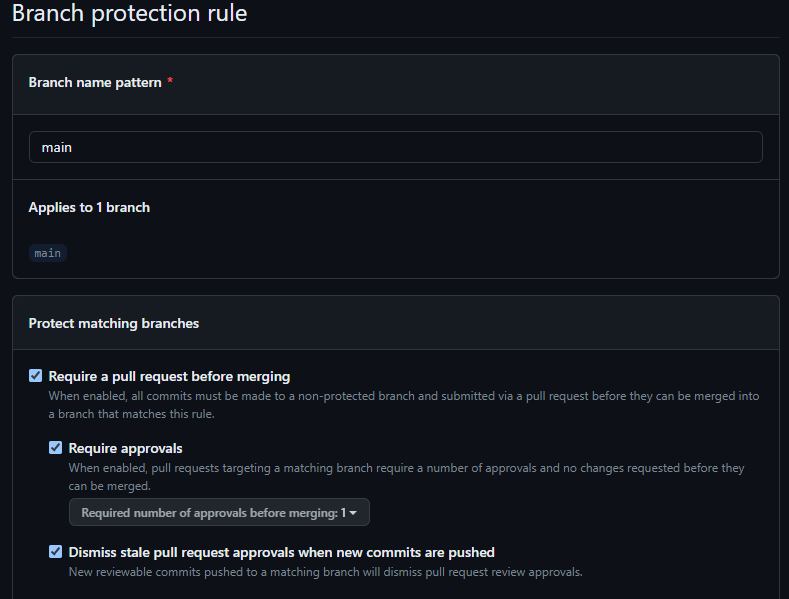

To add a new service create a new repository from the template-microservice using the Use this template button. The name should be _service and the visibility should be public. Once the repository has been created go to the repository settings and add the “Enpro-SS2023-Developers” team to the collaborators. Make the main branch protected with the following settings: Change the License to MIT.

The following files need to be changed:

  • Settings.gradle -> change the “rootProject.name” to the servicename

  • Build.gradle -> under sonarqube change the property “sonar.projectKey” to “IT-REX-Platform_”

  • Change the name of the template package to the name of the service

  • Remove the package-info.java files in the src/main/java folder (or update with the microservice specific information)

  • Update the application.properties file in the src/main/resources folder (check the TODOS in the file)

  • Update the application-prod.properties in the src/main/resources folder (check the TODOS in the file)

  • Update the application-dev.properties in the src/main/resources folder (check the TODOS in the file)

  • Update the application.properties in the src/test/resources folder (check the TODOS in the file)

  • Update the docker-compose.yml

  • Define the GraphQL schema in the src/main/resources/schema.graphqls file

After the service has been created and updated you need to do the following:

  • Add the repository to sonarcloud. You need admin permissions in sonarcloud to successfully complete this part

    • Follow the instructions for extra configuration. Click Configure analysis in cour CI

    • Unselect automatic analysis

    • choose GitHub actions, only the first step needs to be completed

  • Add SONAR_TOKEN to the secrets on GitHub

  • Add the new Ports to the wiki architecture ports.
